Water Storage Tank Wall Mounted Water Pressure Tank 70 100 120 150 L, Automatic Pressure Tank Kit with Detachable Bracket(120L/31.7Gal - L80cmXH59cm)

Product Parameters:Material: Food Grade Stainless SteelColor: SilverCapacity: 70L/18.5GaL , 100L/26.4GaL , 120L/31.7Gal , 150L/39.6Gal , 230L/60.7Gal , 300L/79.2Gal , 450L/119Gal(The actual water storage capacity of the pressure tank is about 50% to 70% of the volume)Features:→ Detachable bracket, not easy to fall over.→ Openable viewing port, easy to clean the inner wall.→ Fully sealed, no scaling, not easy to enter dust and other dirt.→ Easy to install, can be installed next to the well, in the yard, stairwell, Toilet and kitchen.→ High water pressure, can be connected to solar water heater, washing machine and so on.→ Simple operation, automatic pumping when water is low, and automatic water stop when water is full, no need to watch.→ Negative Pressure Valve. When the pressure inside the tank is more than 0.35Mpa, it can automatically exhaust and drain the tank.Q: Under what circumstances do you need a pressure tankA: The pressure tank increases the water pressure, stabilizes the water pressure (especially when the tap water fluctuates, the water heater fluctuates hot and cold, turns well water into convenient tap water, can be connected to water heaters, solar energy, flushing toilets, washing machines, farms, etc.). hot and cold), turns well water into convenient tap water, can be connected to water heaters, solar energy, flushing toilets, washing machines, farmland Irrigation, farm flushing, automatic water vending machine, pure water machine, good equipment for taking regular water after water cut. The outlet pressure of the tank can reach a height of 15 meters.Packing List:1 X Water Storage Tank (comes with 9 pieces of mounting accessories)Warm Prompt:1. This link does not have a water pump and needs to be purchased separately. If the pressure of tap water at home is normal, no pump is required.2. Manual measurement, there will be a 1-2 cm error

• Food-grade Stainless Steel Material：The pressure tank is made of food-grade heavy-duty stainless steel, which is waterproof, abrasion-resistant, pressure-resistant, odorless, and resistant to high and low temperatures, and can be used in (-60℃ to 60℃) environments, and can be used in direct contact with water, which conforms to the standard of human edible water and is very healthy.
• Pressure Tank Capacity：due to the pressure tank above the compressed air, the actual storage can not be marked capacity, this and the pressure setting has a direct relationship with the pressure set, the greater the pressure setting, the more water storage, 3 pressure water storage is about 50% to 70% of the total volume of the water, the water output is about 50% or so.

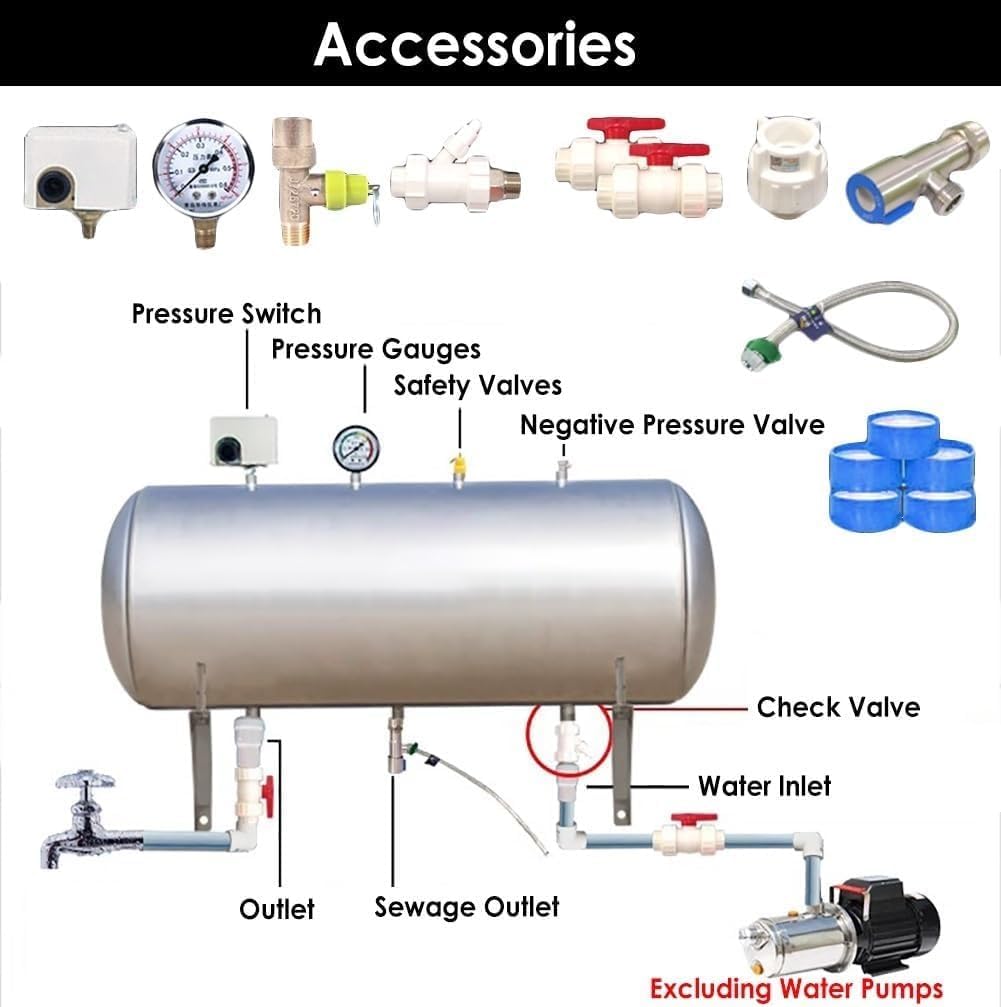

• Working Principle：Use a water pump to pump water from a well or a tap water pipe into a pressure tank, the air pressure in the pressure tank increases, and the pressure switch on the top of the tank controls the water pump to stop automatically. When starting to use water, the air pressure in the tank decreases, and the pressure switch controls the water pump to start automatically, so as to realize the fully automatic function.
• Ultra-high Pressure Resistance：the experimental pressure is 6kg, the working pressure is within 3kg, the vertical height can rise by 30m. The top of the pressure tank is designed with three holes, the safety explosion-proof valve is installed separately, the pressure can be automatically discharged to prevent water pressure from rising. automatically discharged to prevent water pressure containers in the vacuum state to form a negative pressure.
• About Installation： Please match self-priming pump or submersible pump according to the actual situation(Note: Well water pump not included). It can be connected with water heater, washing machine, solar energy and other equipment with automatic tower-free water supply pressure tank, which can be used for domestic life Water, industrial/agricultural/livestock water, tap water pressurization, garden watering.
